TESTO 830-T4 infrared thermometer set 30:1 optics, meas. range -50 to +500 deg

Name: TESTO 830-T4 infrared thermometer set 30:1 optics, meas. range -50 to +500 deg
Brand: TESTO
SKU: 46135290

Brand: TESTO

Art.-no. 46135290

Manufacturer article no. 0563 8314

EAN 4029547011771

All versions

Similar products

Individual prices for customers after login

TESTO 830-T4 infrared thermometer set 30:1 optics, meas. range -50 to +500 deg

Art.-no. 46135290

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

The infrared thermometer testo 830-T4 achieves precise results for contactless surface temperature measurement even at greater distances. The measuring spot diameter is only 36 mm at a distance of 1 m, meaning that even small, movable or dangerous targets can be measured from a safe distance.

Execution

2-point laser spot marker for targeting the measurement point
adjustable emission level
Hold function (for holding a reading)
clear, illuminated digital display
External sensor connection for thermocouple temperature sensor TE type K
Protective leather case
Cross band surface sensor

Advantage

comfortable one-handed operation thanks to ergonomic pistol design
Emission level determination by external TE sensor
high resolution processor for high precision (resolution 0.1°C)
30:1 optics for accurate measurements even at longer distances
°C contact measurement with connectable TE sensor

Delivery

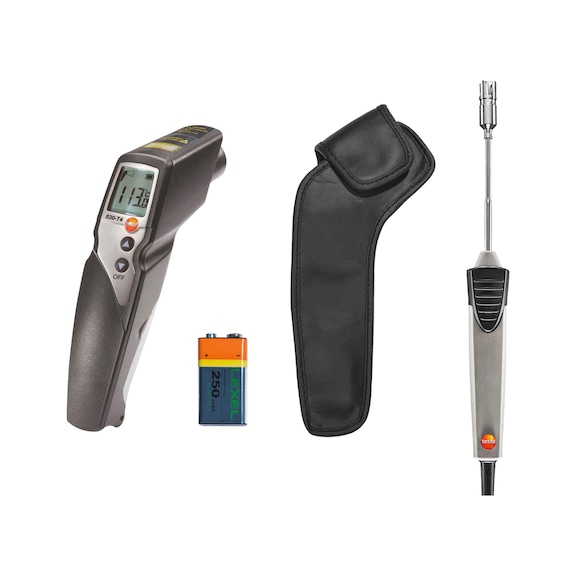

Infrared thermometer testo 830-T4 including protective leather case, cross band surface sensor, batteries and calibration log.

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

Brand	TESTO
Manufacturer Part Number	0563 8314
Model	testo 830-T4
Number of laser markings	2-point
Min./max. temperature measuring range	-30 to 400 °C
Digit increment (measuring instrument for temperature)	0.1 °C
Accuracy temperature	+/- 1,5°C at -20 to 0°C, +/- 2°C at -30 to -20,1°C, +/- 1°C or +/- 1 % of measured value (remaining measuring range)
Min./max. emission ratio	0.1-1.0
Emissivity adjustable	In steps 0.01
Sensor type	Infrared sensor
Optical focus	30:1
Compatible with	Sensor type K (NiCr-Ni)
Functions	Alarm signal acoustic, Alarm signal optical, Display light
Length x width x height	190 x 75 x 38 mm
Battery designation	9 V 6LR61
Number of rechargeable batteries/batteries	1 PCS
Weight	200 g
Harmonized System Code	90251900
Gross Weight	0.560 kg
