Prec. collet chuck DIN ISO 15488-B32 470E 19.5 mm GERC32-HP FAHRION Protect

Name: Prec. collet chuck DIN ISO 15488-B32 470E 19.5 mm GERC32-HP FAHRION Protect
Brand: FAHRION
SKU: 23323614

Brand: FAHRION

All versions

Individual prices for customers after login

Art.-no. 23323614

Quantity

Price per

Piece

You need more information or have not found your desired product?

Application

For HSC machining with high-precision machining results.

Execution

HP collets with small concentricity and repeat tolerance of 2 µm (for system tolerance of 3 µm and with 3 x dia. maximum = 50 mm), clamp bridge h10.
For ATORN precision collet chucks and Fahrion CentroP precision spring collet chucks.
With FAHRION|Protect corrosion protection for longer service life.
Surface super-finished for enhanced retention force.

Advantage

Greater concentricity extends tool service life.
Collets do not need to be replaced as often or can be used longer for specific applications.

Delivery

1x type ER precision collet chuck.

Product information

HAHN+KOLB Catalogue

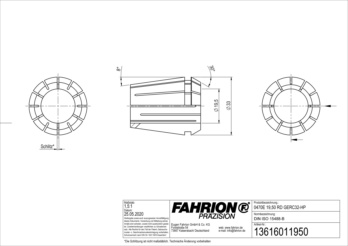

CAD data (available after login)

Certificates/ Documents
