KEMMLER drill bit holder VDI50 shape E1 diameter 25 mm
Brand: KEMMLER
Art.-no. 22740329
Manufacturer article no. 509.51.25
Individual prices for customers after login
Application
To accommodate all solid drill bits with straight shank, standardised in accordance with DIN 6595
Execution
- Alloyed case-hardening steel with a core tensile strength of at least 950 N/mm²
- Case-hardened, HRC 60 ± 2 (HV 700 ± 50)
- Hardness depth 0.8 mm ±0.2 mm
- black-oxide and precision-ground finish
- With internal coolant supply or with threaded connection for external coolant supply
Notes
Previous standard DIN 69880/VDI 3525
Delivery
1x VDI drill bit holder shape E1
 | |
Brand | KEMMLER |
Manufacturer Part Number | 509.51.25 |
VDI mount diameter | 50 |
Type | E1 |

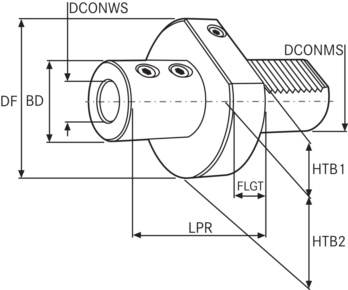

Diameter (DCONWS) | 25 mm |
Collar diameter (DF) | 98 mm |
Diameter 3 (BD) | 45 mm |
Height (HTB1) | 35 mm |
Height 2 (HTB2) | 49 mm |
Holder width (LPR) | 80 mm |
Collar height (FLGT) | 30 mm |
Harmonized System Code | 84661020 |
Gross Weight | 3.500 kg |
