KEMMLER HSK-T 63-90-90 alignment holder
Brand: KEMMLER
Art.-no. 23106521
Manufacturer article no. T63.18.90.090
Individual prices for customers after login
Application
Calibrate the angle position of milling/turning centre spindles. Check and adjust the arc swing position of the machine spindles.
Execution
- Determine the reference points (calibration) of optical presetters.
- Calibrate the accuracy of the CNC lathe revolver holders.
- Set the rotating table zero point of 5-axis machining centres.
- Alignment surface ± 0.01 mm to the centre axis.
- Parallelism to driving slots < 0.01 mm.
Notes
Supplied with test report
Delivery
1x HSK-T alignment holder
 | |
Brand | KEMMLER |
Manufacturer Part Number | T63.18.90.090 |

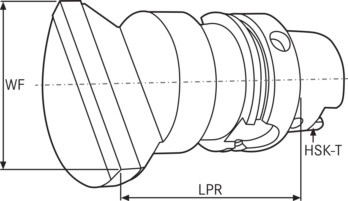

Tool holding device | HSK 63 |
Diameter | 90 mm |
Projecting length | 90 mm |
External collar diameter | 63 mm |
Harmonized System Code | 84663000 |
Gross Weight | 2.000 kg |
