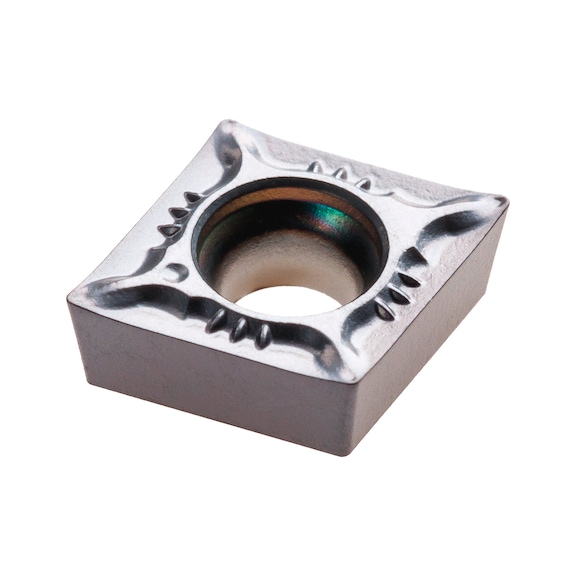

ATORN indexable insert CCMT060204-FP1 ACP25T

Name: ATORN indexable insert CCMT060204-FP1 ACP25T
Brand: ATORN
SKU: 17863692

Brand: ATORN

All versions

Individual prices for customers after login

Art.-no. 17863692

Quantity

Price per

Piece

You need more information or have not found your desired product?

Advantage

very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
very positive chip breaker, ensures ideal chip breaking with small cutting depths

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

Brand	ATORN
EAN	4050293728873
Manufacturer Part Number	12370732
Shape of indexable insert ISO	C
Clearance angle of indexable insert ISO	C
Tolerance class of indexable insert ISO	M
Indexable insert type ISO	T
Size of indexable insert ISO	06
Thickness of indexable insert ISO	02
Corner radius of indexable insert ISO	04
Coating	CVD
Carbide type area ISO	P
Machining conditions for indexable insert	Medium
Carbide type ISO	P25
Carbide type	ACP25T
ISO-Code Rotating	CCMT 060204
Material to be processed	Steel, Stainless steel, Cast metal
min./max. ap	0.1-2.5 mm
Materials group	P (primary application), K (secondary application), M (secondary application)
f min./max.	0.07-0.25 mm/r
f min.	0.07 mm/r
max. f	0.25 mm/r
max. ap	2.5 mm
min. ap	0.1 mm
Supply type	Smoothing
Chip breaker code	FP1
Min./max. Vc in steel	100-240 m/min
Min./max. Vc in cast iron	120-250 m/min
Min./max. Vc in stainless steel	70-200 m/min
Harmonized System Code	82090020
Gross Weight	0.900 g
