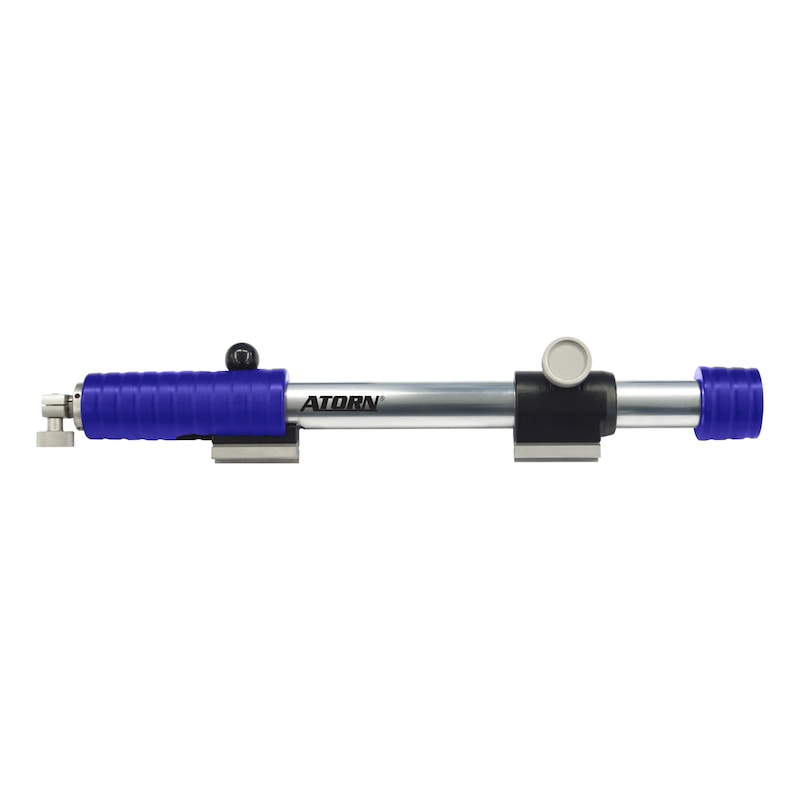

ATORN comparison measuring instrument version 2

Brand: ATORN

Art.-no. 31970011

Manufacturer article no. 31059650

EAN 4066107034603

All versions


Individual prices for customers after login

You need more information or have not found your desired product?

Application

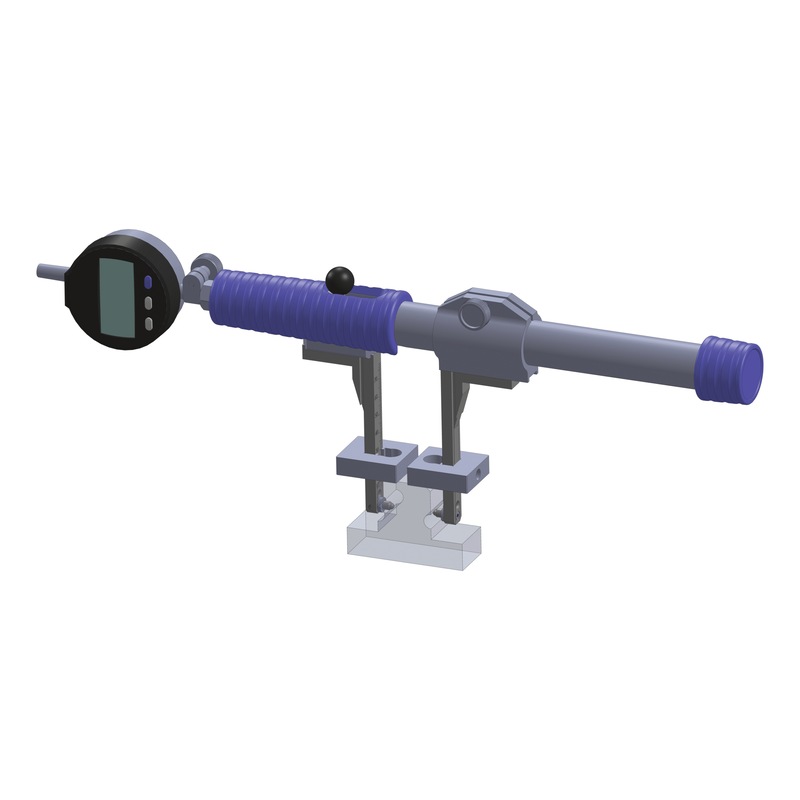

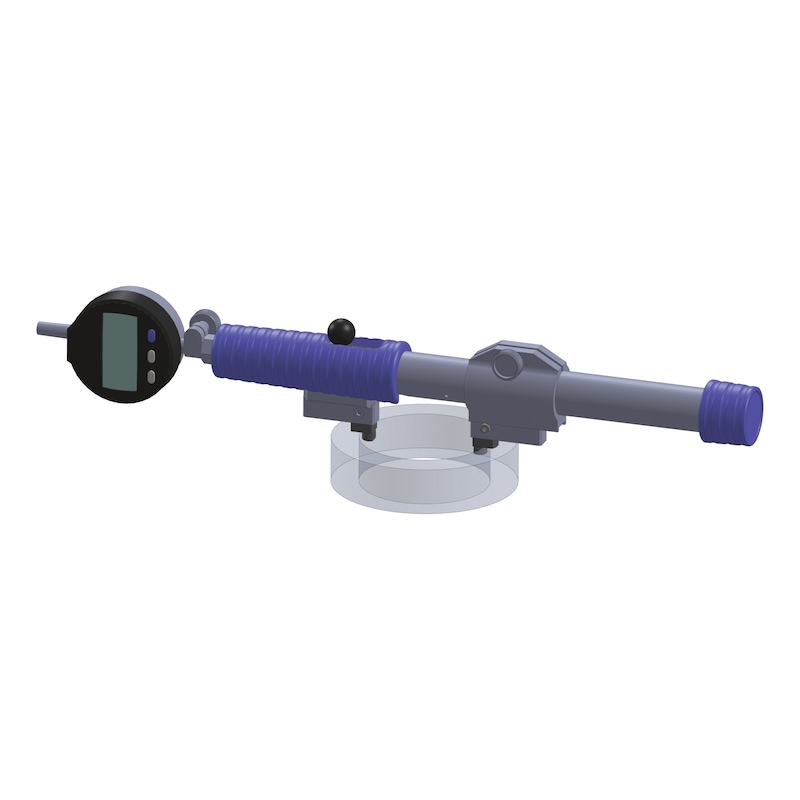

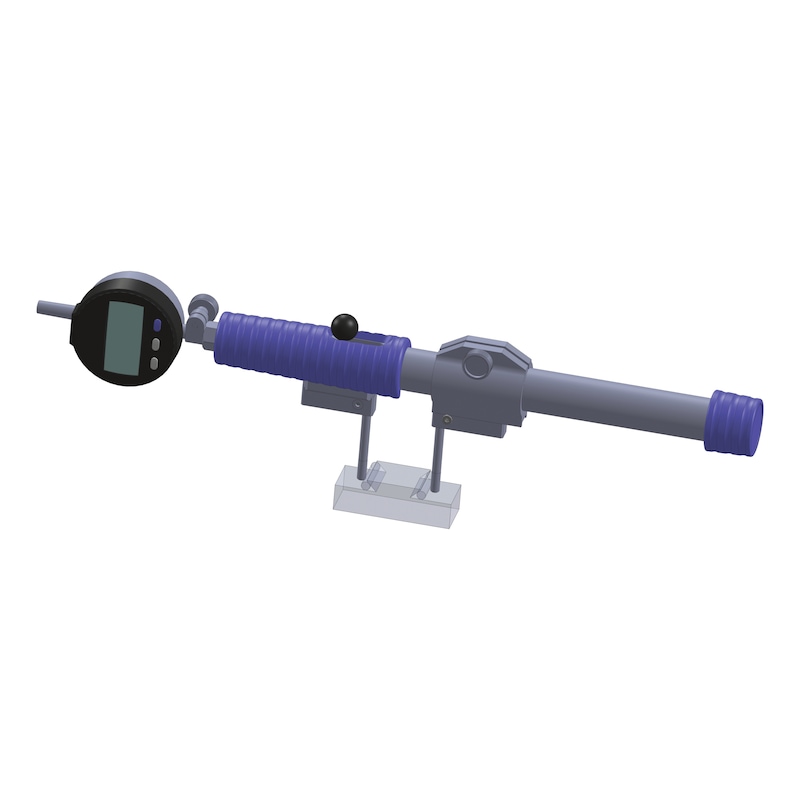

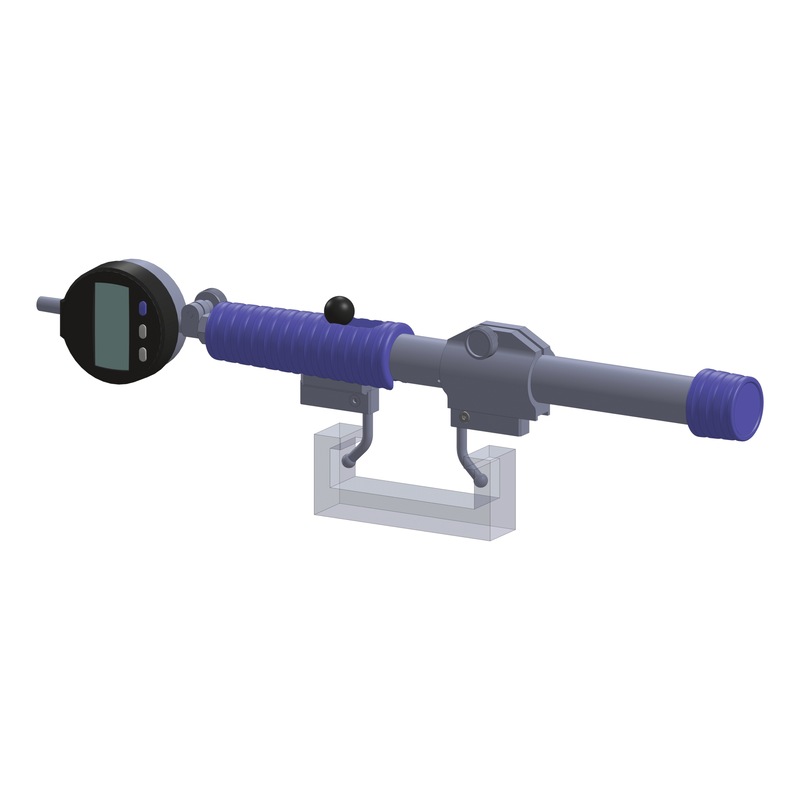

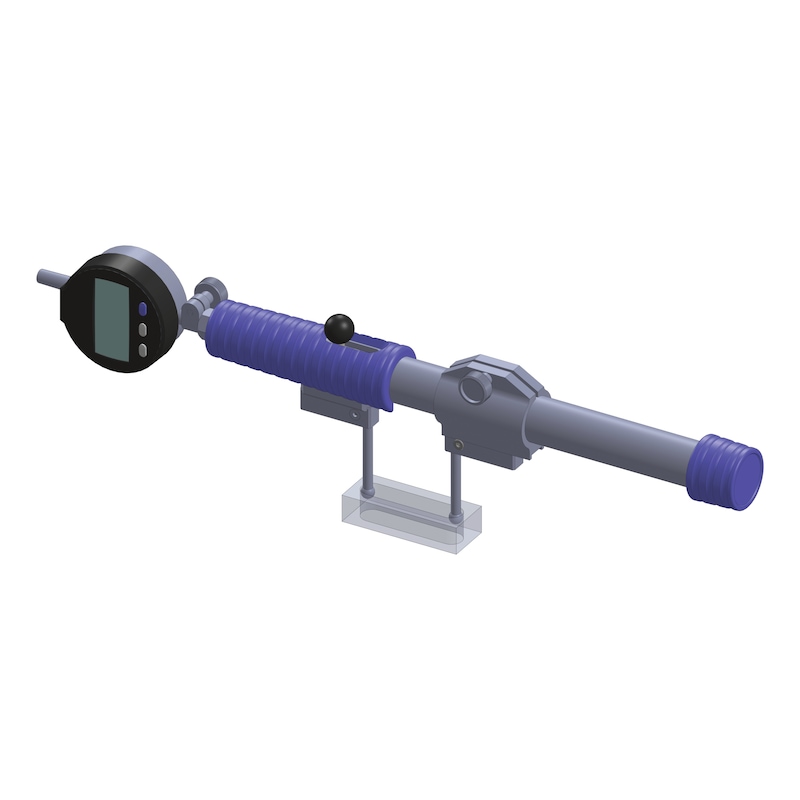

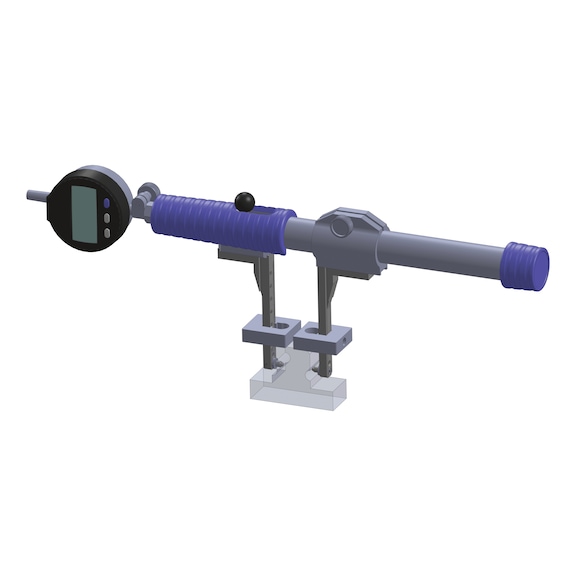

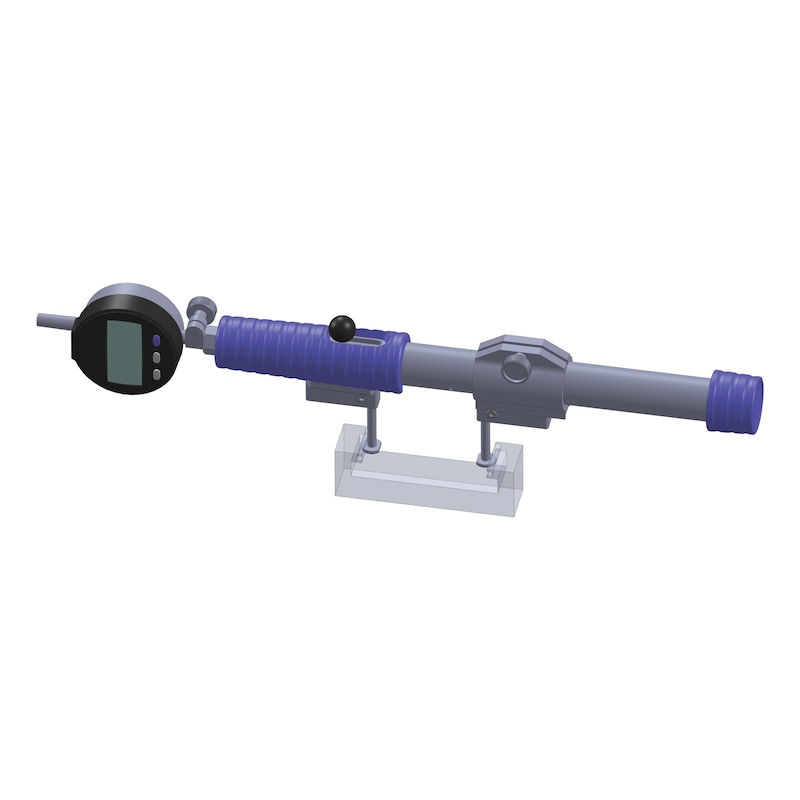

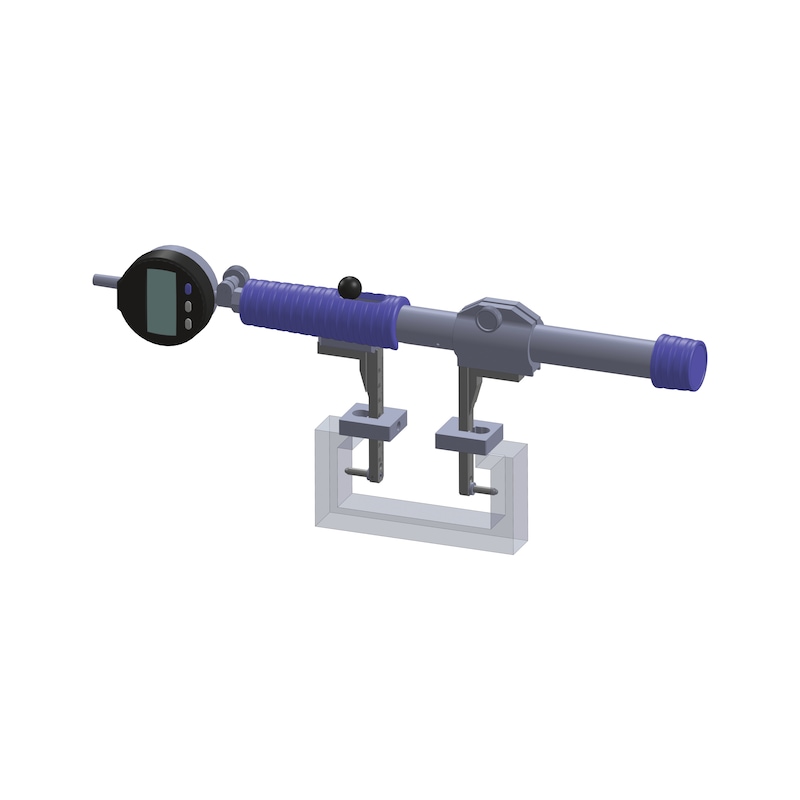

For universal measurement of various tasks, e.g. external and internal measurement of bores, threads, toothing, recesses, grooves etc.

Execution

  • 1 adjustable fixed measuring arm
  • 1 moving measuring arm for internal and external measurements, spring-mounted for consistent, repeatable results, measuring direction reversible, measurement path approx. 18 mm
  • robust, torsion-free tubular structure
  • Measured values displayed by dial gauge, precision pointer or electronic measuring probes
  • Adjusted using a setting device with gauge block combinations, master gauges, ring gauges or other material measures
  • Can be extended up to 2,000 mm using extensions

Advantage

  • Flexible system

Notes

Without dial gauge or dial indicator

Delivery

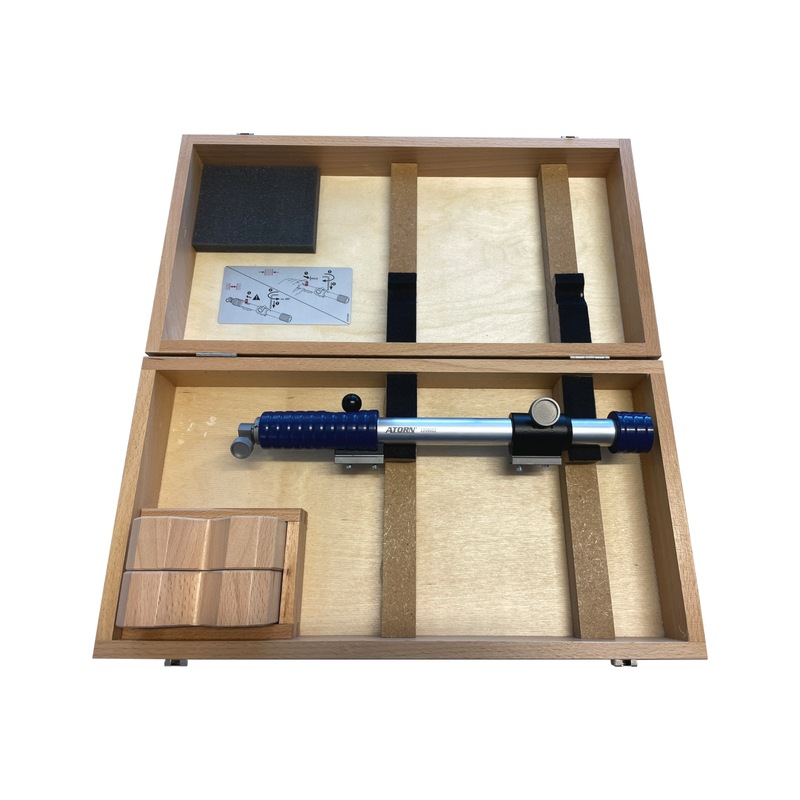

Basic unit in wooden box, incl. adapter for old version 1 indicator contact points

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

 |

 |

Brand

ATORN

EAN

4066107034603

Manufacturer Part Number

31059650

Min./max internal length measuring range

25-250 mm

Min./max. external length measuring range

0-200 mm

Measurement force

5 N

Harmonized System Code

90173000

Gross Weight

0.815 kg

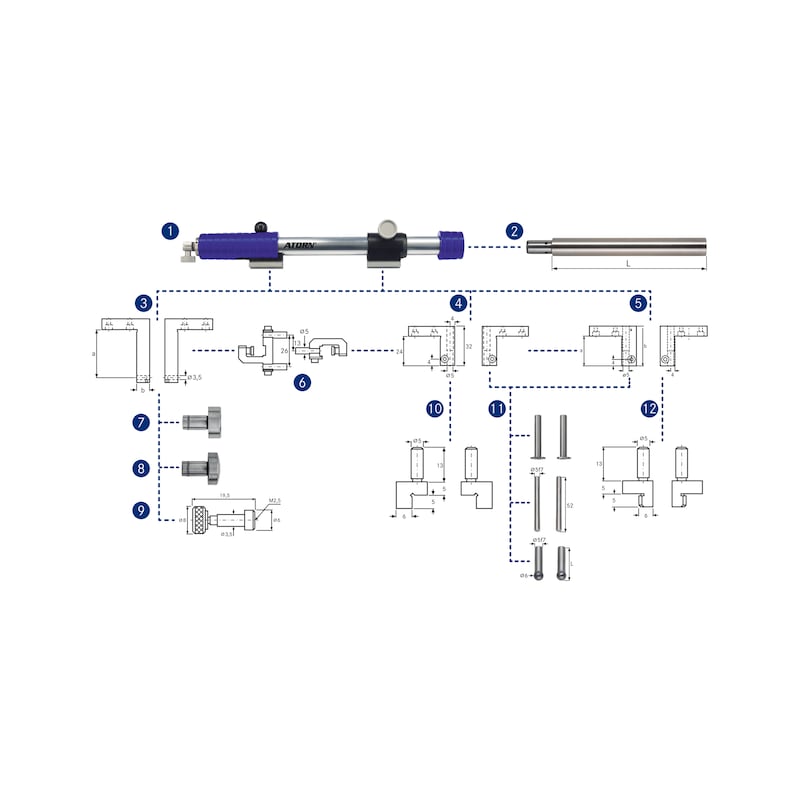

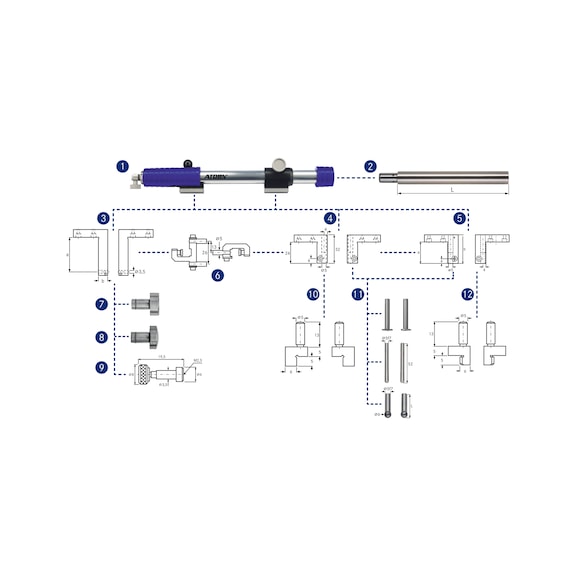

Additional accessory:

Product
Description
Quantity
Price per
Price
labelling/lettering/engraving up to 16 chars to be specified in shopping basket
labelling/lettering/engraving up to 16 chars to be specified in shopping basket

Labelling/lettering/engraving up to 16 characters (more than 16 characters available upon request)

x 1 Piece
ATORN extension 100 mm for comparison measuring instrument V2
ATORN extension 100 mm for comparison measuring instrument V2

Extensions for universal measuring instrument

ATORN
x 1 Piece
ATORN extension 200 mm for comparison measuring instrument V2
ATORN extension 200 mm for comparison measuring instrument V2

Extensions for universal measuring instrument

ATORN
x 1 Piece
ATORN extension 400 mm for comparison measuring instrument V2
ATORN extension 400 mm for comparison measuring instrument V2

Extensions for universal measuring instrument

ATORN
x 1 Piece
ATORN attachment piece for comparison measuring instrument version 2
ATORN attachment piece for comparison measuring instrument version 2

Attachment piece for universal measuring instrument

ATORN
x 1 Piece
ATORN shoulder indicator contact point for external measurements version 2
ATORN shoulder indicator contact point for external measurements version 2

Gauge slide for universal measuring instrument

ATORN
x 1 Piece
ATORN shoulder indicator contact point for internal measurements version 2
ATORN shoulder indicator contact point for internal measurements version 2

Gauge slide for universal measuring instrument

ATORN
x 1 Piece
ATORN univ. comp. meas. instr. w/ sph. indicator contact points 6 mm, L=23 mm
ATORN univ. comp. meas. instr. w/ sph. indicator contact points 6 mm, L=23 mm

Gauge slide for universal measuring instrument

ATORN
x 1 Pair
ATORN univ. comp. meas. instr. w/ sph. indicator contact points 6 mm, L=53 mm
ATORN univ. comp. meas. instr. w/ sph. indicator contact points 6 mm, L=53 mm

Gauge slide for universal measuring instrument

ATORN
x 1 Pair
ATORN universal comparison measuring instrument cylindrical gauge slide 5 mm
ATORN universal comparison measuring instrument cylindrical gauge slide 5 mm

Gauge slide for universal measuring instrument

ATORN
x 1 Pair
ATORN indicator contact point with flat head for version 2
ATORN indicator contact point with flat head for version 2

Gauge slide for universal measuring instrument

ATORN
x 1 Piece
ATORN measuring arm 35 mm for comparison measuring instrument version 2
ATORN measuring arm 35 mm for comparison measuring instrument version 2

Measuring arm for universal measuring instrument

ATORN
x 1 Piece
ATORN depth stop for comparison measuring instrument version 2
ATORN depth stop for comparison measuring instrument version 2

Depth stop for measuring arms

ATORN
x 1 Piece
ATORN adapter M2.5 for comparison measuring instrument version 2
ATORN adapter M2.5 for comparison measuring instrument version 2

Adapter for gauge slides

ATORN
x 1 Piece
ATORN adapter old ind. contact point for comparison meas. instrument version 2
ATORN adapter old ind. contact point for comparison meas. instrument version 2

Adapter for old gauge slides for new device

ATORN
x 1 Piece
ATORN adapter new ind. contact point for comparison meas. instrument version 1
ATORN adapter new ind. contact point for comparison meas. instrument version 1

Adapter for new gauge slides for old device

ATORN
x 1 Piece
ATORN dial gauge, 25 mm meas. diff., 0.01 mm graduation w/ concentric mm display
ATORN dial gauge, 25 mm meas. diff., 0.01 mm graduation w/ concentric mm display

Dial gauge concentric display

ATORN
x 1 Piece
ATORN elec. dial gauge type B 25 mm range 0.001 mm increment for dynamic meas.
ATORN elec. dial gauge type B 25 mm range 0.001 mm increment for dynamic meas.

Electronic dial gauge

ATORN
x 1 Piece
