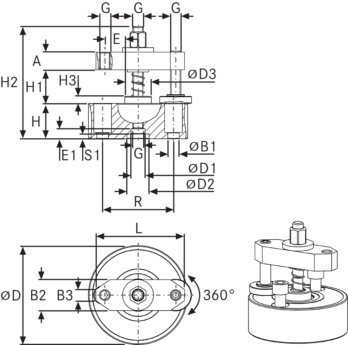

AMF 6210AGS-B10 adapter with straight clamp

Application

The adapter with straight clamp is used for initial clamping of a workpiece using AMF's modular system. The adapter can be clamped on size B10 or B20 base or intermediate elements or on BH10, BP10, BH20 or BP20 clamping modules. The adapter has a built-in workpiece stop and a supporting spring element that keeps the clamp in position and enables simple handling. The clamping height is adjustable and different pressure pieces can be adapted to the clamp.

Advantage

• Quick, easy and flexible clamping of complex workpiece contours on machine tables. Ideal for positioning and securely clamping workpieces at the required machining height in machine tools.

Notes

The fastening screws are included in the scope of delivery. Suitable pressure pieces, such as 7110DIX-**xM** and 7110DKX-**xM**, can be found in the AMF catalogue under "Standard clamping elements".

Delivery

1x adapter with straight clamp
