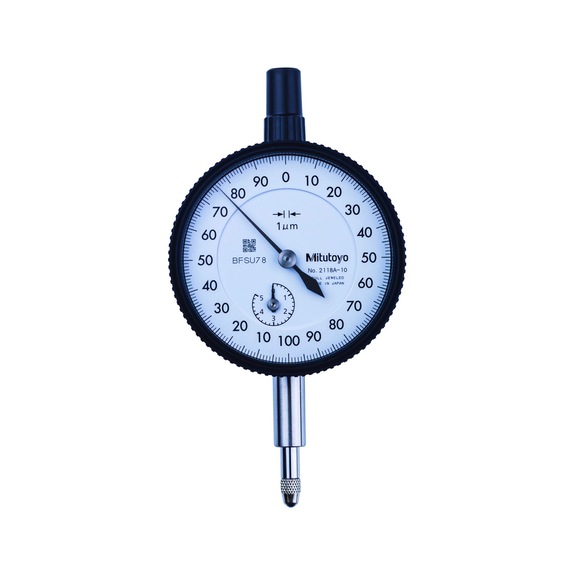

Brand: MITUTOYO
Calibration Group: C
Art.-no. 32118628
Manufacturer article no. 2118AB-10
Individual prices for customers after login
Application
for measuring lengths and differences in length, e.g. concentricity, flatness, position measurements.
Execution
- Thread: M 2.5 x 0.45 mm
Delivery
Supplied with a factory test certificate
Brand | MITUTOYO |
Manufacturer Part Number | 2118AB-10 |
Length measuring range | 5 mm |
Scale value | 0.001 mm |
Measurement travel of one pointer revolution | 0.2 mm |
Outer diameter | 57 mm |
Material of outer ring | Plastic |
Measurement force | 1.5 N |
Calibration Group | C |
Harmonized System Code | 90178090 |
Gross Weight | 0.197 kg |
