Special transportation: Additional transportation costs may apply for this product.
Brand: AMF
Length: 296 mm
Art.-no. 28983211
Manufacturer article no. 303297
EAN 4020772303297
Individual prices for customers after login
 | |
Brand | AMF |
EAN | 4020772303297 |
Manufacturer Part Number | 303297 |

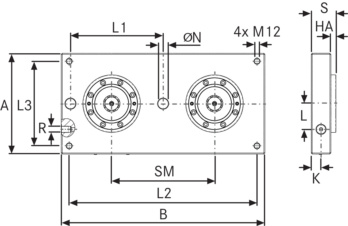

Width 3 (HA) | 15 mm |
Thread dimension (R) | G 1/4 inch |
Height 4 (S) | 62 mm |
Distance (SM) | 320 mm |
Distance 3 (L2) | 515 mm |
Width (B) | 546 mm |
Length (A) | 296 mm |
Length 2 (L) | 65 mm |
Length 4 (L1) | 250 mm |
Retraction force/closing force | 40 kN |
Retaining force | 105 kN |
Weight | 59.500 kg |
Harmonized System Code | 84662098 |
Gross Weight | 59.500 kg |
