Brand: AMF
Art.-no. 28983106
Manufacturer article no. 532416
Individual prices for customers after login
 | |
Brand | AMF |
Manufacturer Part Number | 532416 |

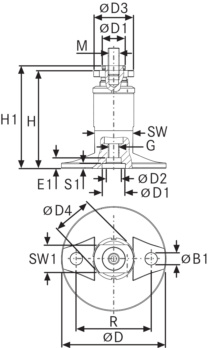

Diameter (ØD) | 78 mm |
Diameter 2 (ØD1) | 15 mm |
Diameter 3 (ØD2) | 15 mm |
Diameter 4 (ØD3) | 35 mm |
Thread dimension (G) | M8 |
Height (H) | 105 mm |
Height 2 (H1) | 108 mm |
Distance (R) | 50 mm |
Width 2 (S1) | 4.5 mm |
Width across flats (SW) | 30 mm |
Width across flats 2 (SW1) | 27 mm |
Weight | 0.980 kg |
Harmonized System Code | 84662020 |
Gross Weight | 0.980 kg |
